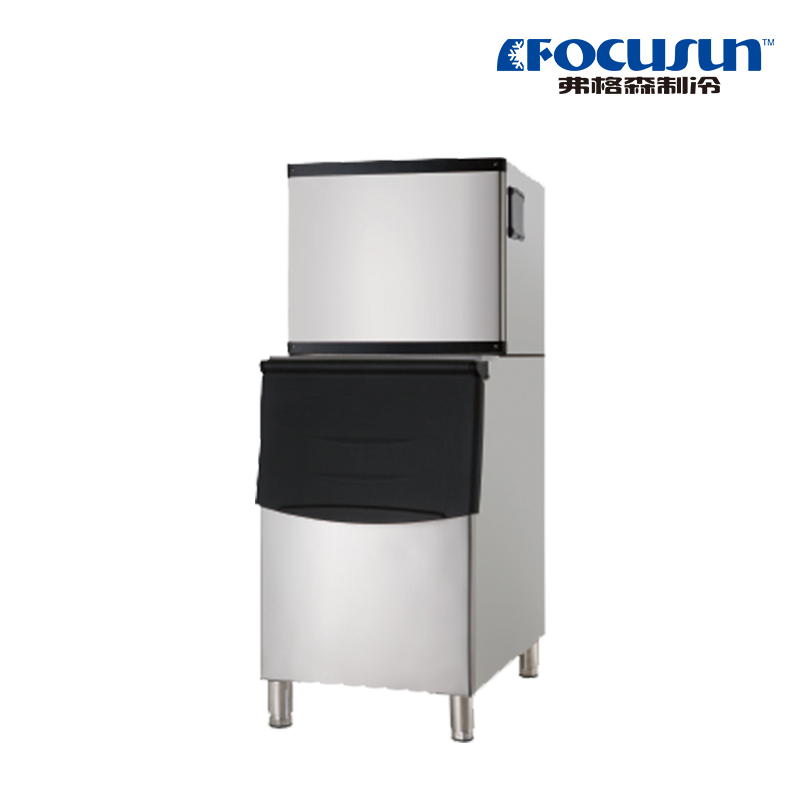

Essential details
Daily Capacity: 455kg/24 H
Capacity of Ice Bin: 125kg
Refrigerant: R22/R404A/R507A
Water Inlet Temperature: 25℃
Dry Bulb Temperature: 35℃
Installed Power: 2300w
Power Supply: 50/60Hz,220V, 1P
Net Weight: Machine: 85kg, Ice Bin: 45kg
Dimension(L*W*H): 760*830*1893mm
Condenser: Air cooling/Water cooling
Features
1. Original touch open type ice making machines with aesthetic design
2. Micro-computer automatic control system assures secure and stable performance
3. Large storage refrigerator door makes it easy to take out ice and wash inside
4. Noses can be overlapped so that the volume of ice-making will be doubled
5. Authorized European CE and China CCC certification
Operational Environment
Ambient temperature: 2-43℃, water temperature: 2-38℃, water pressure:0,13 Mpa-0.55Mpa.
Space Requirement for Installation
The top and two sides of the machine should be at least 25cm *away from the wall, at least 12cm for the back of machine. The air outlet of air cooled machine should be free of obstruction.
The Maximum Daily Output is tested under
Room temperature of 19℃, Water temperature of 9℃;
Supply Ability
Minimum order quantity: 1 unit
Price negotiable
Payment method: T/T, L/C, Western Union, Alibaba
Supply capacity: 60 units/year
Delivery deadline: 30-60 days to ship
Conventional packaging
1. Standard wooden case
2. Machine comes into use, customer only needs prepare power for the machine
3. All required components for installing the machine will be provided
4. Can be shipped in 20 feed or 40 feed containers
About Focusun
FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.
