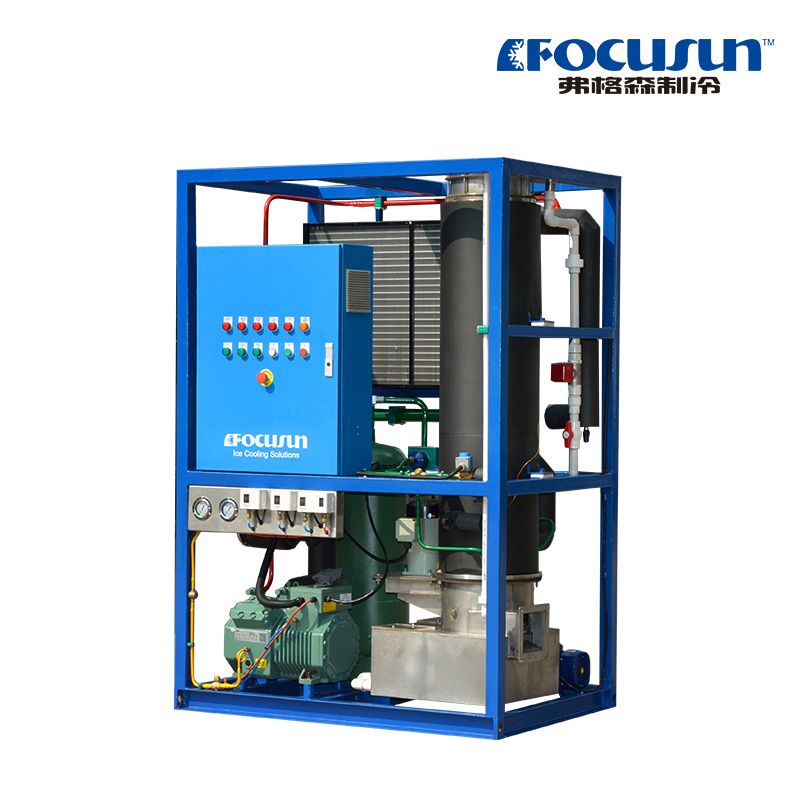

Essential details

Daily Capacity: 1T/24 H

Refrigerant: R22/R404A/R507A

Water Inlet Temperature: 25℃

Dry Bulb Temperature: 35℃

Installed Power: 6kw

Power Supply: 50/60Hz,220V/380V/440V, 3P

Operating Weight: 890kg

Dimension(L*W*H): 1400*800*1800mm

Condenser: Air cooling

Principle of ice making

1. Tube ice is formed in a vertical shell-and-tube vessel by water passing down inside the tubes which are cooled by the circulation of refrigerant on the outer surface.

2. As the ice falls from the tubes it is cut by the rotating ice cutter to a desired size. The ice tubes are about 50 mm in length and 21, 28, 34mm three options in external diameter.

3. When the ice reaches the desired thickness, water will stop flowing automatically. The refrigerant is removed to a surge drum and hot gas is circulated around the tubes causing the ice tubes to melt and slide down.

Advantage of the tube ice

Compared with other kinds of ice, tube ice has the highest density which is pure, difficult to melt and completely conforms to food standards, It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh,etc.

Features

1. Pure German technology and years’ research experience in refrigeration of Focusun.

2. Original Pre-Purify ” patented technology makes ice crystal.

3. All equipment is made of 3D simulation assembly, compact structure, which makes it humanized to operate and maintain.

4. Evaporator adopts SUS304,PE,and aluminum material.

5. PLC system controls the ice making process automatically.

Supply Ability

Minimum order quantity: 1 unit

Price negotiable

Payment method: T/T, L/C, Western Union, Alibaba

Supply capacity: 60 units/year

Delivery deadline: 30-60 days to ship

Conventional packaging

1. Standard wooden case

2. Machine comes into use, customer only needs prepare power for the machine

3. All required components for installing the machine will be provided

4. Can be shipped in 20 feed or 40 feed containers
