Features

1. Patented UNI-EVEPTM processing technology ensures larger evaporation area and higher cooling efficiency.

2. The part inside brine tank that touches brine water is made of SUS304 which bears low temperature and corrosion resistance.

3. Particular can dumper and thawing tank design makes operation easier.

4. Thawing tank is heated by air discharged from compressor to save more energy and suits low water temperature area.

5. Every brine block ice machine can be designed and built as per your specific requirements.

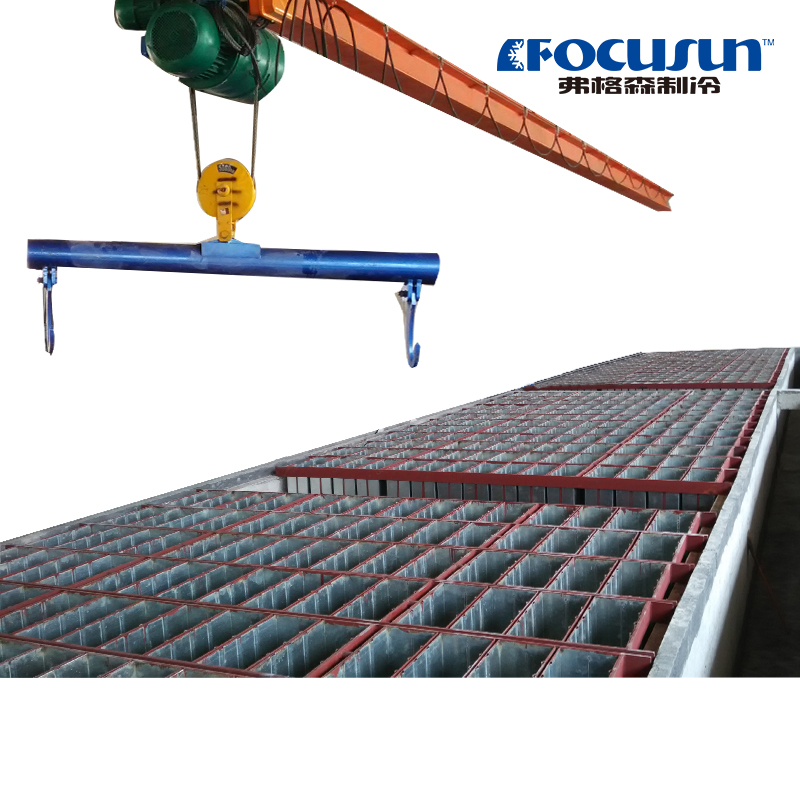

Main components

1. Brine Tank: The stainless steel part between the brine water and the brine tank highly resists rust and it works well in a cold condition. Concrete brine tank is also suggestible for some projects.

2. Ice Bucket: Stainless steel 304 and galvanized steel are available. The later is chosen for cost-saving.

3. Evaporator: Paktong tube evaporator with high heat exchange effect, anti-rust and anti-corrosion to ensure long service life.

4. Agitator: Adjust the brine concentration to improve the heat exchange effect.

5. Can dumper: Humanized design guarantees the ice-thawing efficiency.

6. Thawing Tank: Heated by hot gas discharged from the compressor so that it is more energy-saving and suitable for low water temperature area.

Principle of ice making

1. Put the ice buckets filled with water in the brine tank.

2. Through heat exchange, the water in the ice bucket is frozen into ice.

3. The crane will hoist a row of buckets down into the ice thawing tank full of running warm water.

4. Ice surface thaws and gets separated from the ice bucket.

Supply Ability

Minimum order quantity: 1 unit

Price negotiable

Payment method: T/T, L/C, Western Union, Alibaba

Supply capacity: 60 units/year

Delivery deadline: 30-60 days to ship

Conventional packaging

1. Standard wooden case

2. Machine comes into use, customer only needs prepare power for the machine

3. All required components for installing the machine will be provided

4. Can be shipped in 20 feed or 40 feed containers

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.
