Essential details
Daily Capacity: 30T/24 H
Refrigerant: R22/R404A/R507A
Water Inlet Temperature: 25℃
Dry Bulb Temperature: 35℃
Installed Power: 130kw
Power Supply: 50/60Hz,220V/380V/440V, 3P
Operating Weight: Unit:3280kg, Evaporator:4860kg, Cooling Tower:1630kg
Dimension(L*W*H): Unit:L2800*W2200*H2000mm, Evaporator:L1450*W1450*H5200mm, Cooling Tower:Φ3050*H2780mm
Condenser: Evaporative cooling
Principle of ice making

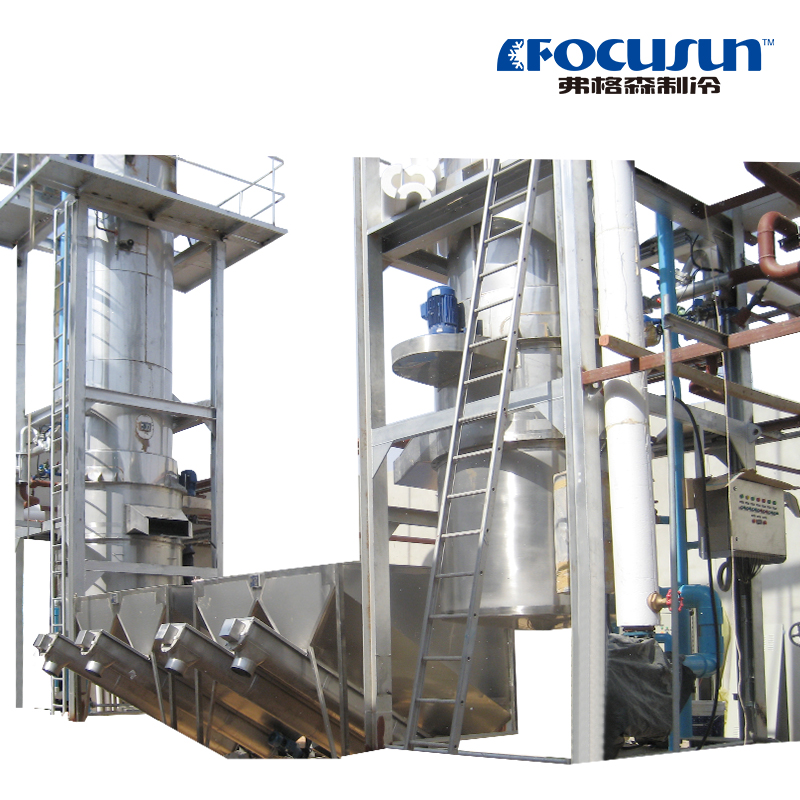

1. Tube ice is formed in a vertical shell-and-tube vessel by water passing down inside the tubes which are cooled by the circulation of refrigerant on the outer surface.
2. As the ice falls from the tubes it is cut by the rotating ice cutter to a desired size. The ice tubes are about 50 mm in length and 21, 28, 34mm three options in external diameter.
3. When the ice reaches the desired thickness, water will stop flowing automatically. The refrigerant is removed to a surge drum and hot gas is circulated around the tubes causing the ice tubes to melt and slide down.
Advantage of the tube ice
Compared with other kinds of ice, tube ice has the highest density which is pure, difficult to melt and completely conforms to food standards, It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh,etc.
Features
1. Pure German technology and years’ research experience in refrigeration of Focusun.
2. Original Pre-Purify ” patented technology makes ice crystal.
3. All equipment is made of 3D simulation assembly, compact structure, which makes it humanized to operate and maintain.
4. Evaporator adopts SUS304,PE,and aluminum material.
5. PLC system controls the ice making process automatically.
Application
1. hot spring
2. snow theme pubs,
3. cold steam rooms
4. discos
5. cafes
6. snow rooms
7. animal venues
8. large gatherings
9. ice and snow art landscaping for film and television
Supply Ability
Minimum order quantity: 1 unit
Price negotiable
Payment method: T/T, L/C, Western Union, Alibaba
Supply capacity: 60 units/year
Delivery deadline: 30-60 days to ship
Conventional packaging
1. Standard wooden case
2. Machine comes into use, customer only needs prepare power for the machine
3. All required components for installing the machine will be provided
4. Can be shipped in 20 feed or 40 feed containers
About Focusun
FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.
